EP-9.312 Rotary Cultivator PTO Gearbox — Precision PTO Gearbox for Agricultural Implements
The EP-9.312 represents the next generation of Rotary Cultivator PTO Gearbox engineering. With its ductile cast iron housing, precision spiral bevel gears, and 1:3 reduction ratio, this gearbox handles up to 62HP for sustained agricultural work.
📋 EP-9.312 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | EP-9.312 |
| Gear Ratio | 1:3 |
| Gear Teeth | 12/364.58 |
| Gear Module | 4.58 |
| Rated Power (HP) | 62 |
| Rated Input Speed | 540 RPM |
| Input/Output | 1 3/8 Z6 / Optic axis |
| Gear Material | 20CrMnTi Alloy Steel, Carburized & Quenched (58-62 HRC) |
| Housing Material | Ductile Cast Iron |
| Bearings | Tapered Roller Bearings |
| Seals | Double-Lip NBR Oil Seals with Dust Excluder |
| Net Weight | 27 kg |
⭐ Key Features & Engineering Advantages
📈 Adjustable Column Lengths
Available with multiple column length options to accommodate different tiller widths and tractor three-point hitch configurations.
⚙ Heavy-Duty Spiral Bevel Gears
Manufactured from 20CrMnTi alloy steel with carburizing treatment to 58-62 HRC surface hardness, providing exceptional wear resistance during high-torque soil cultivation at depths up to 300mm.
🛡 Reinforced Cast Iron Body
QT500-7 ductile cast iron housing engineered to withstand repeated vibration and impact loads generated during rotary tilling of compacted and rocky soils.
💧 Triple-Sealed Against Soil Ingress
Three-stage sealing system with labyrinth seal, double-lip oil seal, and external dust cap provides complete protection against fine soil particles and moisture penetration.
⚡ Optimized for High-Torque Tilling
3:1 reduction ratio amplifies tractor PTO torque by 300%, delivering the sustained rotational force required to break through hardpan, clay, and heavily compacted field soils.
🔧 Universal Tiller Fitment
Input and output shaft specifications match standard rotary cultivator mounting dimensions used across European, Japanese, and Chinese tiller brands.
🔄 Compatibility & Fitment Information
The EP-9.312 is designed with standard industry mounting dimensions and shaft specifications, making it a direct replacement for gearboxes found on many popular agricultural implements. Compatible implement brands include (referenced for cross-referencing purposes only — these are not trademark claims):
Howard
Maschio
Kuhn
Yanmar
Kubota
Agric
Breviglieri
Celli
Falc
Sicma
Disclaimer: Brand names are listed solely for cross-reference and compatibility identification. Ever-power Australia PTO Gearbox Co.,Ltd. is not affiliated with or endorsed by the above brands.
🔎 Selection & Sizing Guide
Choosing the right cultivator gearbox affects tilling depth, soil finish, and fuel efficiency. Use these criteria to determine if the EP-9.312 meets your needs:
⚙ Matching Gear Ratio to Application
1:1 to 1:1.5 ratio — Minimal speed reduction; used when the implement blade/tine speed should closely match PTO speed. Common for finishing mowers and light-duty applications.
1:1.5 to 1:2 ratio — Moderate torque increase with proportional speed decrease. Suitable for standard rotary cutters, medium-duty mowers, and general-purpose implements.
1:2.5 to 1:3+ ratio — High torque multiplication for heavy loads. Essential for rotary cultivators, post hole diggers, and brush cutters working in dense material.
⚡ Matching Tractor HP to Gearbox Power Rating
Always select a gearbox with a rated power (HP) equal to or greater than the maximum PTO output of your tractor. Running a gearbox beyond its rated power causes overheating, accelerated gear wear, and premature failure. As a best practice, maintain a 10-20% safety margin above your actual operating load.
🔄 540 RPM vs 1000 RPM — Which PTO Speed?
540 RPM PTO is the standard for most agricultural implements under 100HP. The EP-9.312 is designed for 540 RPM input. 1000 RPM PTO is used on higher-horsepower tractors (typically 75HP+) and requires a gearbox specifically rated for that speed. Do not connect a 540 RPM gearbox to a 1000 RPM PTO without a speed adapter.
🛡 Aluminum vs Cast Iron Housing
Aluminum: Best for compact tractors under 25HP, coastal/humid environments, and applications where weight matters (finishing mowers, small rotary cutters). Excellent heat dissipation and corrosion resistance.
Cast Iron: Required for medium-to-heavy duty applications above 25HP. Superior shock resistance and structural rigidity for brush cutting, heavy mowing, cultivating, and post hole digging.
🔧 Standard vs Custom Gearbox
Our standard models cover 90% of common agricultural gearbox applications with industry-standard mounting and shaft dimensions. For OEM manufacturers or unique implement designs requiring non-standard ratios, shaft configurations, or mounting patterns, we offer full custom manufacturing with MOQ as low as 50 units. Contact our engineering team to discuss your custom requirements.

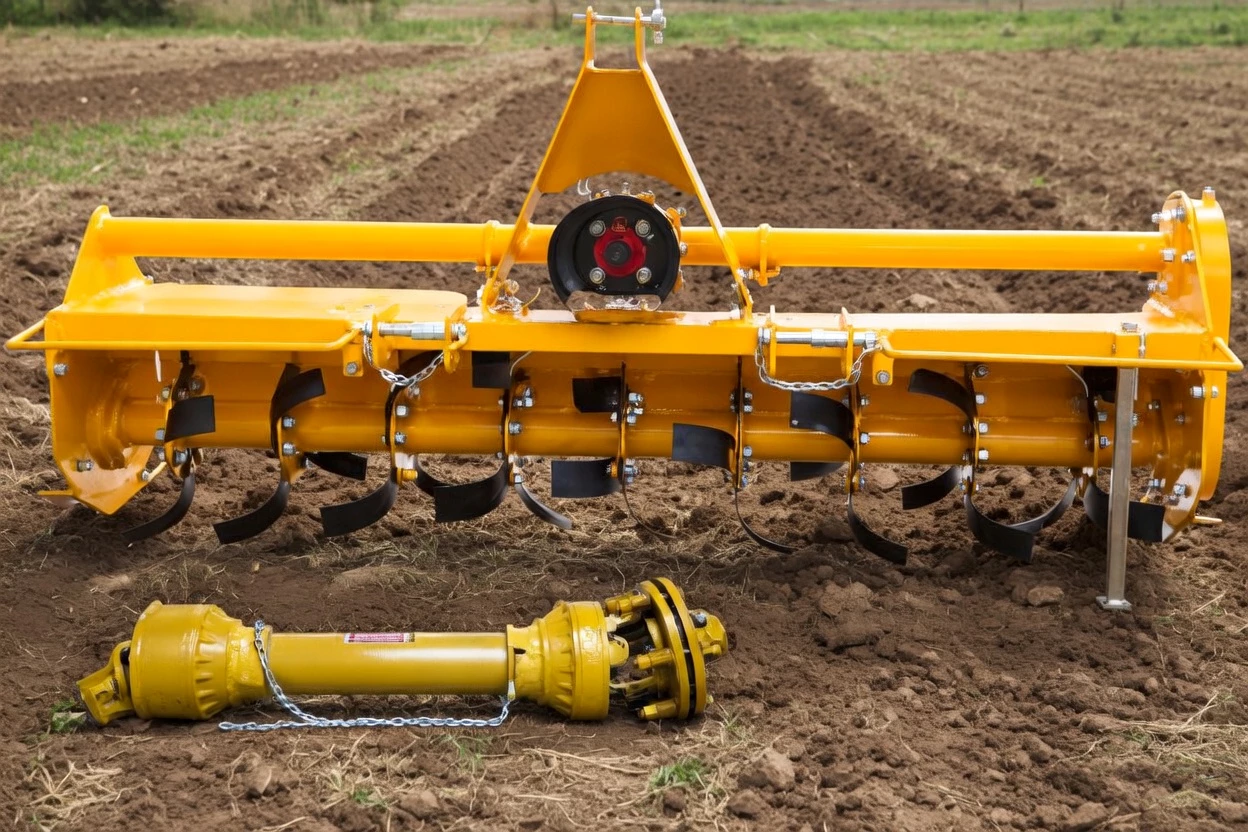

🌱 Typical Application Scenarios
Pasture Renovation
Breaking up compacted pasture soils and incorporating seed and fertilizer for grassland renewal.
Seedbed Preparation
Creates fine, uniform seedbed tilth for direct seeding of cereal crops, vegetables, and cover crops.
Stubble Incorporation
Chops and incorporates crop residue into the top 150-200mm of soil to accelerate decomposition.
Orchard & Vineyard Tillage
Between-row cultivation for weed control and soil aeration in permanent crop plantations.
🛠 Installation & Setup Guide
Follow these steps to install the EP-9.312 on your implement. Always refer to the included instruction manual for model-specific torque values and safety precautions.
- Park the tractor on level ground, lower the cultivator fully, and disconnect the PTO shaft. Ensure the engine is off and hydraulics are depressurized.
- Support the cultivator frame securely with jack stands. Remove the column-to-frame mounting bolts and disconnect the gearbox output from the rotor drive.
- Unbolt and remove the old gearbox assembly. Note the column length and any spacer/shim positions for reassembly reference.
- Clean all mating surfaces on the cultivator frame. Install any required gaskets or O-rings supplied with the new EP-9.312 gearbox.
- Mount the new gearbox to the frame, inserting and hand-tightening bolts first. Verify shaft alignment with the rotor drive before final torquing to 80-100 Nm.
- Reconnect the PTO shaft to the gearbox input. Verify full spline engagement depth and install the shear bolt or overload clutch.
- Fill with the recommended gear oil to the level plug. Run at idle PTO speed for 10 minutes without ground engagement to bed in the gears.
❓ Frequently Asked Questions
How do I handle a seized gearbox?
First, drain the oil and inspect for metal contamination. If gears are not damaged, flush with diesel fuel, refill with fresh oil, and run at no-load for 5 minutes. If metal fragments are present, the gearbox requires professional rebuild or replacement.
Does operating depth affect gearbox life?
Yes. Deeper tilling (200mm+) significantly increases load on the gearbox. Ensure your tractor PTO horsepower exceeds the gearbox rated power by at least 20% when operating at maximum depth in heavy soils.
What warranty coverage applies?
All EP cultivator gearboxes carry a 12-month warranty against manufacturing defects. Damage from overloading, incorrect oil, or improper installation is excluded.
What gear oil does this cultivator gearbox require?
Use SAE 90 or GL-5 rated EP90 heavy-duty gear oil. The high-torque tilling application demands extreme-pressure additives to protect the gear teeth. Fill to the level plug — approximately 1.5 to 2.5 liters depending on model.
How do I know which column length to order?
Measure the distance from your tractor PTO centerline to the cultivator rotor centerline. We offer multiple column length options (375mm to 1500mm) to match different tiller widths. Contact us with your tiller model for a recommendation.
💬 Customer Reviews & Field Reports
“We needed a tough gearbox for tilling compacted maize stubble land. This EP gearbox has outlasted two cheaper brands we tried before. Very satisfied.”
— Pieter V., Free State, South Africa
“This gearbox transformed our rotary hoe. We till 200 acres of heavy clay each spring and this unit handles it without flinching. The 1:3 ratio gives excellent torque at the tines.”
— Bruce M., Victoria, Australia
“Perfect replacement for our Maschio tiller gearbox. Same dimensions, same performance, half the price. We have been running it for two seasons with no problems at all.”
— Giovanni F., Emilia-Romagna, Italy
“Ordered for our 60-inch tiller. Quality is very good — machining is clean and seals are tight. Delivery was prompt. Would buy again.”
— James C., Iowa, USA
“Excellent build quality. The gear noise is remarkably low compared to our previous gearbox. Oil stays clean even after 150 hours of paddy field preparation.”
— Hiroshi K., Hokkaido, Japan
📈 EP-9.312 vs Economy Gearboxes — Head-to-Head Comparison
When comparing the EP-9.312 against lower-cost alternatives, the differences become clear in materials, engineering tolerances, and long-term durability:
| Feature | EP-9.312 (Ever-power) | Economy Alternative |
|---|---|---|
| Gear Material | 20CrMnTi Alloy Steel (58-62 HRC) | 40Cr or plain carbon steel (45-50 HRC) |
| Heat Treatment | Carburizing + Quenching + Tempering | Surface hardening only |
| Housing | Ductile Cast Iron (tensile > 450 MPa) | Grey cast iron or recycled aluminum |
| Bearings | Tapered roller bearings (major brand) | Deep groove ball bearings (unbranded) |
| Seals | Double-lip NBR/Viton with dust excluder | Single-lip generic rubber seal |
| Transmission Efficiency | 96%+ | 88-92% |
| Service Life (estimated) | 3,000+ hours | 800-1,200 hours |
| Warranty | 12 months | 3-6 months or none |
🔗 Related Products & Accessories
PTO Drive Shafts
Wide angle, telescoping, and standard PTO shafts with shear bolt and slip clutch protection.
Replacement Gears & Bearings
OEM-quality spiral bevel gear sets, tapered roller bearings, and oil seal kits for field repairs.
Sprockets, Pulleys & Chains
Agricultural roller chain, sprockets, V-belt pulleys, and timing belt pulleys for implement drives.
Custom OEM Gearboxes
Custom gear ratios, shaft configurations, and housing designs for implement manufacturers (MOQ 50+).
➔ Browse our full product catalog
🏆 Certifications & Quality Standards
ISO 9001:2015 Certified
Our manufacturing facility operates under a certified ISO 9001:2015 quality management system, ensuring consistent product quality from raw material inspection through final testing.
Material Test Certificates
Every batch of 20CrMnTi gear steel is accompanied by a mill certificate verifying chemical composition and mechanical properties. Hardness testing reports are available on request.
100% Factory Tested
Each gearbox undergoes run-in testing, noise measurement, and oil leak inspection before packaging. No unit ships without passing our final QC gate.
