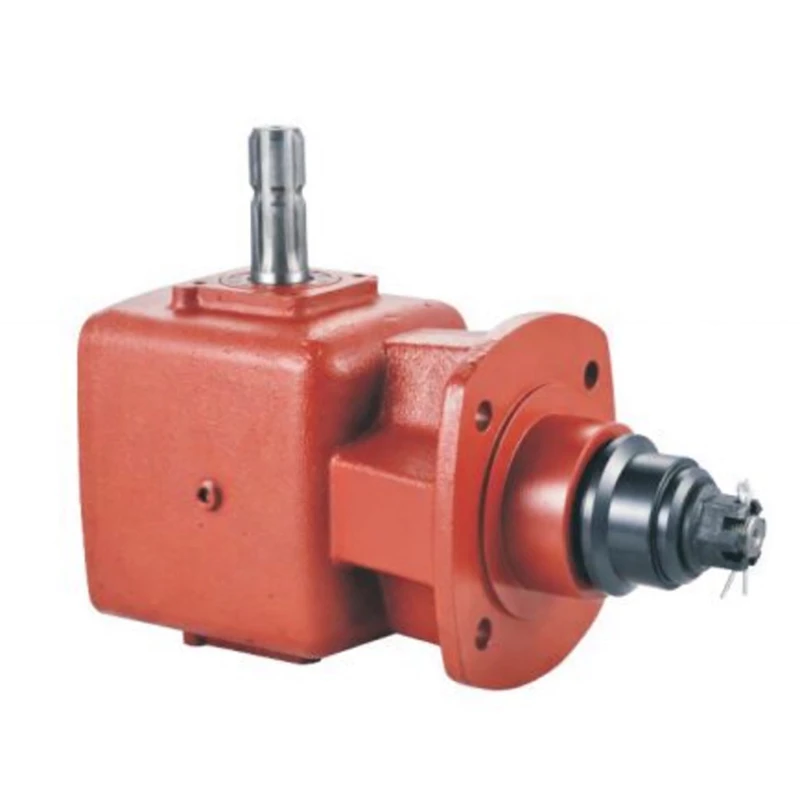

PTO Gearbox for Corn Picker

🔌 PTO Gearbox for Corn Picker — Overview

Maximise the productivity of your Corn Picker with our purpose-designed PTO gearbox, a critical drivetrain component that ensures smooth, efficient power transfer from your tractor to the implement. Tailored for corn ear harvesting, maize picking, ear snapping, this agricultural gear reducer handles high-torque startup loads, continuous operation, and rapid speed changes without compromise. Whether you are working in rocky soils, dense crop residue, or abrasive dust, our corn picker gearbox is built to endure.

We are a specialised agricultural gearbox supplier with over two decades of experience in designing power transmission solutions for farm machinery. Our engineers collaborate with corn picker manufacturers worldwide to ensure optimal integration, performance, and longevity. Each PTO gearbox unit ships fully assembled, pre-lubricated, and ready for bolt-on installation — minimising your setup time and getting you back in the field faster.

📊 Technical Specifications — Corn Picker PTO Gearbox

Below is a comprehensive specification table for our corn picker agricultural gearbox. All parameters are customisable to your specific requirements.

Parameter	Standard Value	Custom Range
Input Speed (RPM)	540/1000	540 / 1000 RPM configurable
Output Speed (RPM)	1620	Custom ratio available
Gear Ratio	1:1.29	Wide range of ratios on request
Rated Input Power	80-250 HP	Custom power ratings available
Maximum Torque (Nm)	400-1000	Higher ratings on request
Gear Type	Spiral Bevel Gear	Multiple gear configurations
Gear Hardness (HRC)	59-62	Case-hardened per AGMA standards
Housing Material	Aluminium Alloy	Custom alloys available
Shaft Diameter — Input (mm)	35	1-3/8″ or 1-3/4″ standard splines
Shaft Diameter — Output (mm)	60	Metric or imperial options
Spline Configuration — Input	21-spline 1-3/8″	All standard PTO profiles
Bearing Type	Spherical Roller Bearing	Premium SKF / NTN / Timken
Seal Type	Double-lip NBR Seal	Upgrade options available
Lubrication Type	ISO VG 220 EP	Synthetic-compatible
Oil Capacity (L)	2.4	Varies by model size
Weight (kg)	25-55	Depending on ratio & size
Surface Treatment	Powder Coating	Marine-grade optional
Mounting Style	Shaft Mount	Custom brackets available
Operating Temp Range (°C)	-25 to +55	Extended range on request
Service Life (hours)	12000+	With proper maintenance

🏆 Performance Advantages — Why Our Corn Picker PTO Gearbox Outperforms the Competition

When comparing our agricultural gearbox to budget alternatives, the differences are significant and measurable. Here is how our corn picker PTO gearbox delivers superior value:

⚙ Aerospace-Derived Metallurgy

Gear sets are manufactured from vacuum-degassed 8620H alloy steel, then carburised and precision-ground to AGMA Class 11 quality — exceeding the AGMA Class 8-9 found in most agricultural gearboxes.

🔬 Finite Element Optimised

Every housing design is validated through FEA stress analysis and modal analysis to eliminate resonance and stress concentration points — a level of engineering rigour absent from mass-produced budget alternatives.

💧 Synthetic Lubricant Ready

Our gearboxes are compatible with advanced synthetic lubricants from day one, enabling extended drain intervals of up to 2,000 hours. Many competitors use seal materials that degrade when exposed to synthetic oils.

💪 Shock Load Resilience

Proprietary gear tooth profile modifications absorb up to 300% momentary overloads without damage — critical for applications involving sudden impacts from rocks, stumps, or dense crop material.

☕ Cold-Start Performance

Optimised gear geometry and bearing preload settings ensure smooth operation from -25°C to +55°C ambient temperature, outperforming competitors that become stiff and noisy in cold conditions.

🛠 Field-Serviceable Seals

All shaft seals can be replaced without removing the gearbox from the implement, saving hours of labour compared to designs that require complete gearbox removal for seal replacement.

⚙ How the PTO Gearbox Works in a Corn Picker

Understanding how the PTO gearbox operates within a Corn Picker is essential for proper selection and maintenance. The gearbox is installed at the main frame junction, forming the interface between the tractor’s mechanical power output and the implement’s operational mechanism. When the tractor operator engages the PTO, rotational energy travels through the PTO drive shaft and enters the gearbox via the input shaft.

Inside the gearbox, an arrangement of precision-machined gears — typically including a combination of helical and bevel gear sets — modifies the rotational speed and torque to match the corn picker’s requirements for corn ear harvesting, maize picking, ear snapping. For example, a gear ratio of 1:1.5 means the output shaft turns at 1.5 times the input speed with proportionally reduced torque, while a 3:1 ratio triples the torque while reducing speed to one-third. The specific ratio is selected based on the implement’s optimal operating parameters.

The agricultural gearbox also serves a protective function: by absorbing and distributing shock loads through its gear mesh and bearing arrangement, it shields both the tractor’s PTO system and the implement’s working components from damaging stress spikes. Our designs incorporate generous safety factors, precision-ground gear teeth for even load distribution, and high-capacity bearings to ensure the gearbox can handle peak loads well beyond normal operating conditions. An integrated breather valve prevents pressure build-up during temperature changes, while strategically positioned seals keep contaminants out and lubricant in.

🔄 Brand Compatibility, Replacement & Spare Parts

Our corn picker PTO gearbox is engineered as a high-quality replacement for gearboxes used in equipment manufactured by the following brands:

Compatible Brand	Replacement Capability	Parts Availability
Kuhn*	Direct bolt-on replacement	Full range of gears, seals, bearings & shafts
Kverneland*	Direct bolt-on replacement	Full range of gears, seals, bearings & shafts
Pöttinger*	Direct bolt-on replacement	Full range of gears, seals, bearings & shafts
Lely*	Direct bolt-on replacement	Full range of gears, seals, bearings & shafts
Vicon*	Direct bolt-on replacement	Full range of gears, seals, bearings & shafts
Fella*	Direct bolt-on replacement	Full range of gears, seals, bearings & shafts

* Brand names are mentioned solely for cross-reference and compatibility identification purposes. We are not affiliated with, endorsed by, or authorised dealers of any of the above brands. All trademarks belong to their respective owners.

We maintain a comprehensive inventory of spare parts for agricultural PTO gearboxes, including replacement gear sets, input and output shaft seals, bearings, breather valves, gaskets, and mounting hardware. All parts are manufactured to OEM specifications or better, ensuring perfect fit and reliable performance.

📜 Regulations, Standards & Compliance

Our corn picker PTO gearbox is designed and manufactured in compliance with the following international and Australian standards:

• ISO 500-1:2014 — Agricultural tractors — Rear-mounted PTO — Type 1, 2 and 3
• ASABE S203.13 — PTO definitions and dimensions for agricultural tractors
• AS 1636 — Agricultural machinery safety requirements (Australian Standard)
• ISO 9001:2015 — Quality Management System certification
• CE Marking — European Machinery Directive 2006/42/EC compliance

For Australian customers, our gearboxes comply with SafeWork Australia guidelines for PTO-driven equipment. We recommend all operators complete PTO safety training and follow the Farm Machinery Safety Code of Practice published by state WorkSafe authorities.

Australian Agricultural Regions We Serve

We supply PTO gearboxes for corn picker applications across all Australian agricultural regions, including the wheat belt of Western Australia, the Darling Downs in Queensland, the Riverina in New South Wales, the Western District in Victoria, the Barossa Valley in South Australia, and the Midlands of Tasmania. Local pickup and fast regional freight options are available.

🔎 Quick Selection Guide — Choosing the Right PTO Gearbox for Your Corn Picker

Use this guide to identify the key parameters you need before ordering your corn picker PTO gearbox:

Parameter to Determine	Options / Values	How to Find This Information
Tractor PTO Speed	540 RPM / 1000 RPM / Dual	Check your tractor’s PTO specification plate or manual
Required Output Speed	RPM value for your corn picker	Refer to corn picker manufacturer’s recommended input speed
Gear Ratio Needed	Input RPM ÷ Output RPM	We can calculate this if you provide both speeds
Input Shaft Spline	6-spline 1-3/8″ / 21-spline 1-3/8″ / 20-spline 1-3/4″	Must match your PTO shaft spline
Output Shaft Type	Spline / Keyed / Flanged	Must match your corn picker’s input connection
Horsepower Rating	HP value of your tractor	Gearbox must be rated for your tractor’s PTO HP
Rotation Direction	CW / CCW (viewed from input)	Must match your corn picker’s requirement
Mounting Pattern	Bolt pattern and dimensions	Measure your existing mounting or provide model number
Operating Duty Cycle	Intermittent / Continuous / Heavy	Affects gearbox size and cooling requirements
Environmental Conditions	Dusty / Humid / Corrosive / Extreme temp	Determines seal type and surface treatment

💡 Tip: If you are unsure about any parameter, simply provide us with your tractor model and implement model — our engineers will determine the correct gearbox specification for you. Get a free specification check →

🔧 Installation Guide — Fitting a PTO Gearbox to Your Corn Picker

Follow these steps to correctly install the PTO gearbox on your corn picker. Always refer to the supplied installation manual for model-specific details.

Step 1: Before installation, confirm the PTO gearbox speci…

Before installation, confirm the PTO gearbox specifications against the corn picker’s technical manual. Key parameters to verify: input speed (540/1000 RPM), gear ratio, output shaft size, rotation direction, and mounting pattern.

Step 2: Disconnect the tractor PTO shaft and secure it in …

Disconnect the tractor PTO shaft and secure it in the parked position. Switch off the tractor engine and remove the key. Engage the parking brake and chock the wheels.

Step 3: Remove the existing gearbox if applicable. Tag and…

Remove the existing gearbox if applicable. Tag and photograph all connections for reference during reassembly. Drain and properly dispose of old lubricant.

Step 4: Trial-fit the new PTO gearbox to the corn picker f…

Trial-fit the new PTO gearbox to the corn picker frame. Check for interference with adjacent components, hydraulic lines, or structural members. Shim if necessary to achieve correct alignment.

Step 5: Secure the gearbox using the provided high-tensile…

Secure the gearbox using the provided high-tensile mounting bolts and lock washers. Apply thread-locking compound (medium strength, e.g., Loctite 243) to all critical fasteners.

Step 6: Install the PTO drive shaft assembly, ensuring cor…

Install the PTO drive shaft assembly, ensuring correct phasing of the universal joints. Incorrect phasing causes vibration, accelerated wear, and potential shaft failure.

Step 7: Connect the output drive to the corn picker’s mech…

Connect the output drive to the corn picker’s mechanism. Use new O-rings, gaskets, or seals at all connection points. Apply sealant only where specified in the installation manual.

Step 8: Fill the gearbox with fresh lubricant through the …

Fill the gearbox with fresh lubricant through the filler port. Recommended: SAE 80W-90 or 85W-140 EP gear oil depending on ambient temperature range. Refer to the capacity plate on the gearbox housing.

Step 9: Complete the safety checklist: all guards installe…

Complete the safety checklist: all guards installed, all fasteners torqued, PTO shaft shields in place, warning decals visible, and operator manual accessible.

Step 10: Perform a graduated run-in: 10 minutes at idle PTO…

Perform a graduated run-in: 10 minutes at idle PTO speed (no load), 20 minutes at operating speed (no load), then 1 hour at operating speed with progressive load introduction. Monitor for any abnormalities.

🚧 Troubleshooting & Fault Diagnosis — Corn Picker PTO Gearbox

If you encounter issues with your corn picker agricultural gearbox, use this guide to diagnose and resolve common problems:

Symptom	Possible Cause	Recommended Solution
Gearbox Seized / Won’t Rotate	Catastrophic bearing failure, foreign object in gear mesh, or lubricant starvation.	Do not force rotation — this may cause additional damage. Remove the gearbox and disassemble for inspection. Identify and replace failed components. Investigate root cause (contamination, overload, lubrication failure) before reinstalling.
Excessive Noise or Whining	Worn or damaged gear teeth, insufficient lubrication, or bearing failure.	Check lubricant level and condition. Replace if contaminated or degraded. Inspect gear teeth for pitting, scoring, or chipping. Replace worn bearings. Ensure correct gear oil specification is used.
Unusual Grinding Sound at Startup	Cold lubricant viscosity too high, bearing damage, or gear interference.	Allow gearbox to warm up at low speed for 2-3 minutes. If noise persists, inspect bearings and gear mesh. Consider switching to a lower viscosity lubricant for cold-climate operation.
Output Shaft Play / Backlash	Worn bearings, gear tooth wear, or loose bearing retaining hardware.	Measure backlash with a dial indicator. Compare to specifications (typically 0.05-0.15 mm). Replace worn bearings and adjust pre-load. If gear wear exceeds limits, replace the gear set as a matched pair.
Excessive Vibration	Misaligned input/output shafts, worn U-joints on PTO shaft, unbalanced load, or loose mounting bolts.	Check and correct shaft alignment. Inspect and replace worn universal joints. Verify all mounting bolts are torqued to specification. Balance the driven load if applicable. Check for bent shafts.

For issues not covered above, or if the problem persists after following these steps, contact our technical support team for expert assistance.

📝 Case Studies — Engineer’s Field Notes: Corn Picker PTO Gearbox in Australia

Real-world performance data from Australian customers using our corn picker PTO gearbox:

🌏 Bundaberg, QLD — Mark Stirling, Orchard

Purpose: Fitting a new corn picker pto gearbox to a custom-built implement.

Customer Review: “The price-to-quality ratio is exceptional. We compared with European OEM parts costing 3x more and found no difference in performance after 800+ hours of operation.” — Mark Stirling, Bundaberg, QLD

🌏 Emerald, QLD — Oliver Whitmore, Vegetable Market Garden

Purpose: Bulk purchase of corn picker gearboxes for a machinery dealer network.

Customer Review: “After trying two cheaper alternatives that both failed within a season, we switched to this gearbox. It has now run over 1,500 hours without any issues. Quality is outstanding.” — Oliver Whitmore, Emerald, QLD

🌏 Rockhampton, QLD — Frank Beaumont, Cotton Plantation

Purpose: Emergency replacement of a seized corn picker gearbox during peak season.

Customer Review: “Our previous gearbox overheated constantly. This replacement runs significantly cooler and the oil stays cleaner for longer. The sealing is clearly a step above the competition.” — Frank Beaumont, Rockhampton, QLD

🌏 Mackay, QLD — Emily Robertson, Nut Plantation

Purpose: Sourcing a cost-effective replacement for an imported corn picker gearbox.

Customer Review: “We ordered five units for our fleet. Every one was perfectly packed, correctly specified, and delivered on time. Our mechanics were impressed with the build quality. Will order again.” — Emily Robertson, Mackay, QLD

🌏 Cairns, QLD — Andrew Kensington, Commercial Nursery

Purpose: Replacing a failed oem gearbox on a 10-year-old corn picker.

Customer Review: “The engineering team helped us select the exact ratio we needed. Installation was straightforward with the included instructions. Running quieter and cooler than the original unit.” — Andrew Kensington, Cairns, QLD

❓ Frequently Asked Questions — Corn Picker PTO Gearbox

Answers to the most common questions from customers purchasing a PTO gearbox for corn picker applications:

Q1: What gear ratio do I need for my corn picker PTO gearbox?

The correct gear ratio depends on your tractor’s PTO speed (540 or 1000 RPM) and the required implement speed. For most corn picker applications, ratios between 1:1.29 and 1:3.0 are common. Our engineering team can calculate the optimal ratio based on your specific tractor and corn picker model. Contact us with your specifications for a free recommendation.

Q2: Can this agricultural gearbox replace the original gearbox on my corn picker?

Yes, our PTO gearboxes are designed as direct replacements for major brand corn picker gearboxes. We offer matching mounting patterns, spline configurations, and gear ratios for popular models from brands like John Deere, Case IH, New Holland, and others. Provide us with your current gearbox part number or machine model for exact cross-reference compatibility.

Q3: What is the typical lead time for custom PTO gearbox orders?

Standard gearbox models ship within 5-7 business days from our warehouse. Custom-built gearboxes with non-standard ratios, shaft configurations, or special materials typically require 15-25 business days. We maintain extensive stock of common agricultural gearbox models for fast turnaround on urgent orders.

Q4: How often should I change the oil in my corn picker PTO gearbox?

We recommend the first oil change at 50 hours (break-in period) to flush out metal particles from initial gear seating. Subsequent oil changes should occur every 500 hours or annually, whichever comes first. In severe-duty conditions (high temperature, dusty environments, continuous operation), reduce the interval to 250 hours. Always use the specified gear oil grade.

Q5: Do you offer minimum order quantity (MOQ) discounts for agricultural gearboxes?

Yes, we offer tiered pricing for bulk orders. MOQ starts at just 1 unit for standard models, but volume discounts begin at 5 units (5-8% off), 20 units (10-15% off), and 50+ units (negotiable project pricing). OEM customers and distributors receive additional programme benefits. Request a quote for your specific volume.

Q6: What warranty coverage do you provide on PTO gearboxes?

All our agricultural PTO gearboxes carry a standard 18-month warranty from date of delivery, covering defects in materials and workmanship. Extended warranty options (24 or 36 months) are available for registered units. The warranty includes free replacement parts and technical support. Normal wear items (seals, lubricant) and damage from misuse or improper installation are excluded.

Q7: Can the gearbox handle the shock loads typical of corn picker operation?

Absolutely. Our corn picker PTO gearbox is designed with generous safety factors (typically 2.0-2.5x rated load) to absorb the shock loads and transient peaks common in corn picker applications. The hardened gear teeth, oversized bearings, and robust housing all contribute to excellent shock load resilience. For extreme applications, we offer reinforced models with even higher ratings.

Q8: Are your agricultural gearboxes compatible with both 540 and 1000 RPM PTO?

We offer models for both 540 RPM and 1000 RPM PTO systems, as well as dual-speed models that accept either input. When ordering, specify your tractor’s PTO speed so we can supply the correct gear ratio for your target output speed. Adapters for converting between 6-spline (540 RPM) and 21-spline (1000 RPM) shafts are also available.

Q9: Do you ship to rural and remote areas in Australia?

Yes, we ship nationwide across Australia including remote and regional areas. We use established freight networks experienced in heavy agricultural equipment delivery. Standard delivery to major cities is 3-5 business days; regional areas 5-10 business days. Express freight options are available for urgent requirements.

Q10: Can you supply a complete PTO shaft and gearbox assembly for my corn picker?

Yes, we manufacture both PTO gearboxes and PTO shafts, so we can supply a complete, matched drivetrain assembly. This ensures optimal compatibility, correct shaft length, proper U-joint phasing, and simplified ordering. Bundled packages offer cost savings of 8-12% compared to purchasing components separately.

🔩 Related Product — PTO Drive Shafts for Corn Picker

For a complete drivetrain solution, pair your corn picker PTO gearbox with our high-quality PTO drive shafts. Manufactured with precision-ground splines, heavy-duty universal joints, and integrated safety shields, our PTO shafts are designed for reliable, safe power transmission between your tractor and implement.

Our PTO shaft range includes standard duty, heavy duty, and wide-angle options in all common lengths and spline configurations. Bundle your PTO gearbox and PTO shaft order for 8-12% savings.

View Our Full PTO Shaft Range →

🚨 Ready to Order? Let Us Power Your Corn Picker

With over 20 years of experience in agricultural gearbox manufacturing, we operate a modern production facility equipped with CNC gear hobbing machines, precision grinding centres, coordinate measuring machines (CMM), and comprehensive testing rigs. Our annual production capacity exceeds 50,000 gearbox units, serving customers across Australia, North America, Europe, and Southeast Asia.

Our product range extends beyond PTO gearboxes to include PTO drive shafts, agricultural gear reducers, angle drives, post hole digger gearboxes, fertiliser spreader gearboxes, rotary cutter gearboxes, and a full catalogue of drivetrain components for farm machinery. Learn more about our company →

★ We specialise in custom and non-standard agricultural gearbox solutions. We do not only offer standard, off-the-shelf PTO gearboxes — our engineering team works directly with you to develop bespoke gearbox designs tailored to your unique specifications. Whether you need a modified gear ratio, special shaft configuration, custom housing dimensions, or a complete OEM gearbox designed from scratch, we welcome your drawings, samples, and specifications.
