EP-2300058 Heavy-Duty Post Hole Digger PTO Gearbox — Precision PTO Gearbox for Agricultural Implements
The EP-2300058 represents the next generation of Heavy-Duty Post Hole Digger PTO Gearbox engineering. With its ductile cast iron housing, precision spiral bevel gears, and 4.08:1 reduction ratio, this gearbox handles up to 50HP for sustained agricultural work.
📋 EP-2300058 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | EP-2300058 |
| Gear Ratio | 4.08:1 |
| Gear Teeth | 12/49 |
| Gear Module | 4.5 |
| Rated Power (HP) | 50 |
| Rated Input Speed | 540 RPM |
| Input/Output | 1 3/8 Z6 / Optic axis |
| Gear Material | 20CrMnTi Alloy Steel, Carburized & Quenched (58-62 HRC) |
| Housing Material | Ductile Cast Iron |
| Bearings | Tapered Roller Bearings |
| Seals | Double-Lip NBR Oil Seals with Dust Excluder |
| Net Weight | 59 kg |
⭐ Key Features & Engineering Advantages
🌡️ Field-Serviceable Design
Split housing construction with external drain and fill plugs allows lubricant changes and seal replacement in the field without removing the gearbox from the implement.
📈 Multiple Mounting Options
Compatible with both Category I and Category II three-point hitch post hole digger frames with standard bolt patterns.
⚙ High-Ratio Spiral Bevel Gears
20CrMnTi alloy steel gears with deep carburizing to 60+ HRC surface hardness provide the extreme torque multiplication (3:1 to 4:1) needed to bore through compacted soil, clay, and rocky substrates.
🛡 Thick-Wall Cast Iron Housing
Heavy-gauge QT500-7 ductile cast iron body with reinforced flanges designed to absorb the cyclic thrust and radial loads generated during earth auger boring operations.
💧 Heavy-Duty Shaft Seals
Reinforced double-lip seals with integrated spring-loaded wipers prevent abrasive soil and mud from entering the gear chamber during vertical boring operations.
⚡ Maximum Torque Output
High reduction ratios (3:1 to 4:1) deliver sustained high-torque output at low speed — essential for augering through dense clay, shale, and root-filled ground without stalling.
🔄 Compatibility & Fitment Information
The EP-2300058 is designed with standard industry mounting dimensions and shaft specifications, making it a direct replacement for gearboxes found on many popular agricultural implements. Compatible implement brands include (referenced for cross-referencing purposes only — these are not trademark claims):
Danuser
Shaver
Lowe
Auger Torque
Digga
McMillen
General Equipment
AgKNX
Disclaimer: Brand names are listed solely for cross-reference and compatibility identification. Ever-power Australia PTO Gearbox Co.,Ltd. is not affiliated with or endorsed by the above brands.
🔎 Selection & Sizing Guide
Post hole digger gearbox selection depends on boring depth, soil type, and tractor PTO output. Here is a structured approach to selecting the EP-2300058:
⚙ Matching Gear Ratio to Application
1:1 to 1:1.5 ratio — Minimal speed reduction; used when the implement blade/tine speed should closely match PTO speed. Common for finishing mowers and light-duty applications.
1:1.5 to 1:2 ratio — Moderate torque increase with proportional speed decrease. Suitable for standard rotary cutters, medium-duty mowers, and general-purpose implements.
1:2.5 to 1:3+ ratio — High torque multiplication for heavy loads. Essential for rotary cultivators, post hole diggers, and brush cutters working in dense material.
⚡ Matching Tractor HP to Gearbox Power Rating
Always select a gearbox with a rated power (HP) equal to or greater than the maximum PTO output of your tractor. Running a gearbox beyond its rated power causes overheating, accelerated gear wear, and premature failure. As a best practice, maintain a 10-20% safety margin above your actual operating load.
🔄 540 RPM vs 1000 RPM — Which PTO Speed?
540 RPM PTO is the standard for most agricultural implements under 100HP. The EP-2300058 is designed for 540 RPM input. 1000 RPM PTO is used on higher-horsepower tractors (typically 75HP+) and requires a gearbox specifically rated for that speed. Do not connect a 540 RPM gearbox to a 1000 RPM PTO without a speed adapter.
🛡 Aluminum vs Cast Iron Housing
Aluminum: Best for compact tractors under 25HP, coastal/humid environments, and applications where weight matters (finishing mowers, small rotary cutters). Excellent heat dissipation and corrosion resistance.
Cast Iron: Required for medium-to-heavy duty applications above 25HP. Superior shock resistance and structural rigidity for brush cutting, heavy mowing, cultivating, and post hole digging.
🔧 Standard vs Custom Gearbox
Our standard models cover 90% of common agricultural gearbox applications with industry-standard mounting and shaft dimensions. For OEM manufacturers or unique implement designs requiring non-standard ratios, shaft configurations, or mounting patterns, we offer full custom manufacturing with MOQ as low as 50 units. Contact our engineering team to discuss your custom requirements.

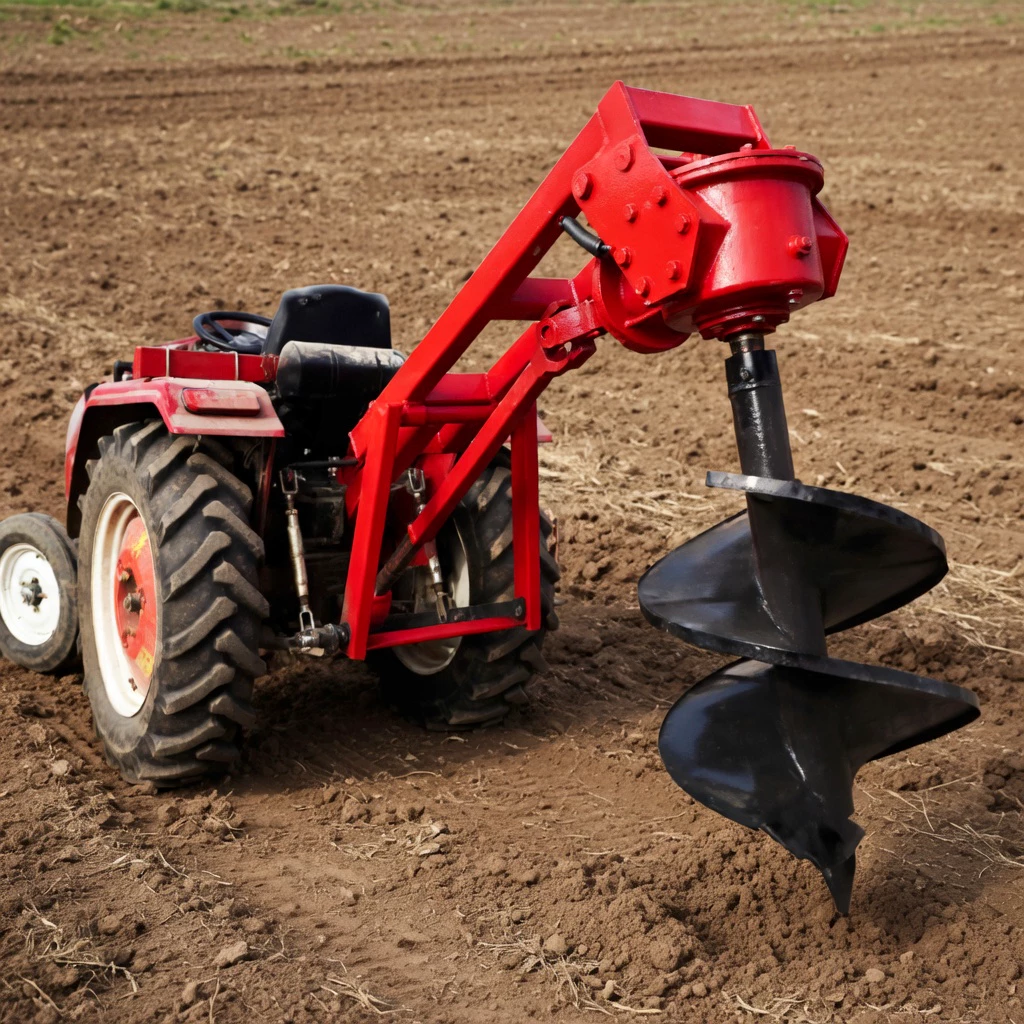

🌱 Typical Application Scenarios
Utility Pole Installation
Boring holes for power poles, telecommunications towers, and rural utility infrastructure.
Fence Post Installation
Boring post holes for agricultural fencing across livestock properties and boundary perimeters.
Tree & Vine Planting
Augering planting holes for orchard establishment, forestry planting, and vineyard trellising.
Foundation Piling
Boring holes for light structural foundations, sign posts, and solar panel ground mounts.
🛠 Installation & Setup Guide
Follow these steps to install the EP-2300058 on your implement. Always refer to the included instruction manual for model-specific torque values and safety precautions.
- Attach the post hole digger frame to the tractor three-point hitch (Category I or II). Raise the frame and secure it in the vertical position.
- Remove the old gearbox by unbolting the top flange from the digger frame. Support the gearbox weight during removal — pit digger gearboxes can weigh 19-59 kg.
- Clean the frame mounting surface and inspect for cracks, worn bolt holes, or frame distortion.
- Lift the new EP-2300058 gearbox into position and align the mounting bolt holes with the digger frame. Install bolts and torque to the specified value (typically 60-90 Nm).
- Connect the PTO shaft to the gearbox input. Ensure the shear bolt is installed and spline engagement is complete.
- Attach the auger bit to the output shaft. Verify the retaining pin or bolt is secure and the auger rotates freely without wobble.
- Fill the gearbox with SAE 90 gear oil to the level plug. Lower the digger to the ground and run a test bore at low throttle to verify operation.
❓ Frequently Asked Questions
What oil and maintenance does a pit digger gearbox need?
Use SAE 90 or EP90 gear oil. Change after first 30 hours, then every 100 hours of boring operation. Inspect output shaft seal for soil ingress after every 20 boring hours and replace if worn.
What auger bit connection does the output shaft accept?
Standard output accepts 2-inch (50.8mm) round shaft auger bits. Some models also offer hex output shaft options. Confirm your auger bit connection type before ordering.
Can I bore into rocky soil with this gearbox?
Yes, within limits. Our pit digger gearboxes are designed for dense clay and moderate rock. For continuous boring in solid rock or heavily fractured stone, use our heavy-duty models (EP-01-084 or EP-2300058) rated at 50HP or above.
How deep can I dig with this gearbox?
Boring depth is limited by auger bit length, not the gearbox. Our gearboxes handle standard auger extensions for holes up to 1.5 meters deep in most soil types.
What causes the gearbox to stall during boring?
Common causes: hitting solid rock or large roots, insufficient tractor PTO horsepower, dull auger bit teeth, or operating in waterlogged ground. Reduce feed pressure, sharpen or replace auger teeth, and ensure tractor HP matches the gearbox rated power.
💬 Customer Reviews & Field Reports
“Replaced our worn-out digger gearbox and the difference is night and day. The EP unit boring through our laterite soil with much less vibration. Great product.”
— Willem D., Mpumalanga, South Africa
“We bore 500+ fence post holes per year on our cattle station. This gearbox chews through our red clay soil without breaking a sweat. Much better build than the brand it replaced.”
— Shane O., Western Australia, Australia
“Used for planting 2,000 olive trees. The gearbox handled the rocky Tuscan hillside soil perfectly. Very smooth operation and the output shaft seal kept all dirt out.”
— Marco B., Tuscany, Italy
“Strong gearbox — bored through heavy Midwest clay without stalling. The 3:1 ratio provides excellent auger torque. Solid purchase.”
— Robert J., Kansas, USA
“We use this for tree planting in forest restoration projects. The high gear ratio and smooth output make it ideal for precise boring in mountain soils.”
— Yuki T., Nagano, Japan
📈 EP-2300058 vs Economy Gearboxes — Head-to-Head Comparison
When comparing the EP-2300058 against lower-cost alternatives, the differences become clear in materials, engineering tolerances, and long-term durability:
| Feature | EP-2300058 (Ever-power) | Economy Alternative |
|---|---|---|
| Gear Material | 20CrMnTi Alloy Steel (58-62 HRC) | 40Cr or plain carbon steel (45-50 HRC) |
| Heat Treatment | Carburizing + Quenching + Tempering | Surface hardening only |
| Housing | Ductile Cast Iron (tensile > 450 MPa) | Grey cast iron or recycled aluminum |
| Bearings | Tapered roller bearings (major brand) | Deep groove ball bearings (unbranded) |
| Seals | Double-lip NBR/Viton with dust excluder | Single-lip generic rubber seal |
| Transmission Efficiency | 96%+ | 88-92% |
| Service Life (estimated) | 3,000+ hours | 800-1,200 hours |
| Warranty | 12 months | 3-6 months or none |
🔗 Related Products & Accessories
PTO Drive Shafts
Wide angle, telescoping, and standard PTO shafts with shear bolt and slip clutch protection.
Replacement Gears & Bearings
OEM-quality spiral bevel gear sets, tapered roller bearings, and oil seal kits for field repairs.
Sprockets, Pulleys & Chains
Agricultural roller chain, sprockets, V-belt pulleys, and timing belt pulleys for implement drives.
Custom OEM Gearboxes
Custom gear ratios, shaft configurations, and housing designs for implement manufacturers (MOQ 50+).
➔ Browse our full product catalog
🏆 Certifications & Quality Standards
ISO 9001:2015 Certified
Our manufacturing facility operates under a certified ISO 9001:2015 quality management system, ensuring consistent product quality from raw material inspection through final testing.
Material Test Certificates
Every batch of 20CrMnTi gear steel is accompanied by a mill certificate verifying chemical composition and mechanical properties. Hardness testing reports are available on request.
100% Factory Tested
Each gearbox undergoes run-in testing, noise measurement, and oil leak inspection before packaging. No unit ships without passing our final QC gate.
🏭 About Ever-power Australia PTO Gearbox Co.,Ltd.
We are a specialist manufacturer of agricultural PTO gearboxes, drive shafts, and power transmission components with over 19 years of production experience. Our 3,800 m² facility houses CNC gear hobbing, grinding, and heat treatment lines capable of producing over 50,000 gearbox units annually. More than 95% of our production is exported to Europe, Australia, North America, and Asia, serving both aftermarket distributors and OEM implement manufacturers.
We offer full OEM and ODM services — from custom gear ratio engineering to private-label packaging. Our minimum order quantities start at just 50 units for custom specifications, and we maintain ready stock of popular models for immediate dispatch. Whether you need a single replacement gearbox or a container load for your distribution network, we deliver competitive pricing, consistent quality, and responsive technical support.
